Ball Bar Test Kit | Ball Bar Calibration

CMM Testing Ball Bar Kit

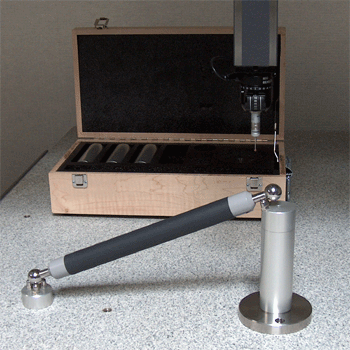

The Ball Bar is used to test the Volumetric Performance of your coordinate measuring machine by taking a series of point-to-point distances in reference locations. Comparing these results, provides an understanding on the CMM measuring cube.

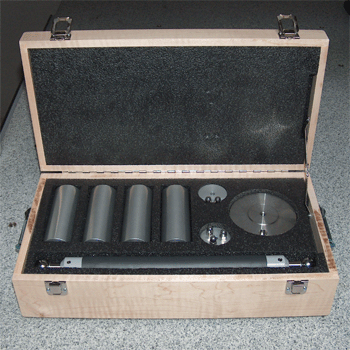

Ball Bar Test Kit consists of:

2	4-⅜ Dia. Base Plates
4	5-¼ High Threaded Risers
1	3-Point Nesting Mount
1	2-Point Nesting Mount
1	Ball Bar Assembly with 1" Spheres
1	Wood Storage Case

NOTE: Specify the Ball Bar length as required for your CMM. Choose 8", 12" or 16" nominal length. Other lengths on request
