Everything you want in a CMM.

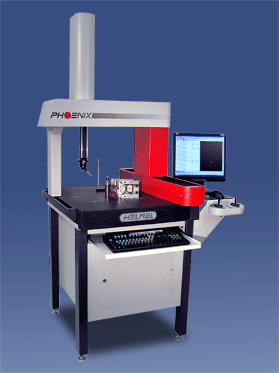

Phoenix

The Phoenix line of CMMs offers two popular sizes to fit your quality inspection needs.

Building on decades of experience with shop floor Coordinate Measuring Machines, Helmel now offers the Phoenix... a heavy-duty, covered version of its popular Checkmaster. The Phoenix is made for harsh environments, with well-placed covers that prevent temperature shock. Its steel measuring scales on metal structures assure uniform expansion.

The Phoenix CMM incorporates all the time-proven features of its "big brother", the Microstar: hardened precision-ground ways, dual beam bridge with reliable V-and-Flat bearing arrangement and intrinsic accuracy. The latter is very important to reliably retain accuracy over time and reduce calibration cost. The Phoenix comes equipped with a full granite base and ergonomic stand.

The motorized system is outfitted with the powerful PMAC controller, the latest computer system and our proprietary GEOMET software, the best CMM package on the market.

UCC LogoAn optional Renishaw UCC2 Controller can be ordered to enhance capabilities turning the Phoenix into a very powerful scanning system.



Would you like more information? Please use our information request form.

Standard Configuration

•Granite worktable

•3/8"-16 Clamping inserts (M10 optional)

•Dual beam bridge design

•USB computer interface connection

•Hardened and ground ways •Die cast, rugged 3-axis joystick controller
•Precision bearings •Pentium computer system
•Fully covered for protection Custom key labels

•Electronic touch probe interface

•Flat panel display

Geomet 101 DCC software

•Windows® XP

Calibration sphere

Geomet 101/301 user guide

GeoWidget training part

•1-Year CMM warranty

Online access to software upgrades



CMM Specifications


Measuring Range

Model Number

X Y Z
112-102 300 (12) 300 (12) 250 (10)
216-142 400 (16) 500 (20) 350 (14)
* Note: Dimensions provided in “millimeter (inch)” format.

Model Number

Scale
Resolution

Repeatability

Volumetric
Accuracy

112-102 .5 µm (0.000020") 3 µm (0.00012") 8.1 µm (0.00032")
216-142 .5 µm (0.000020") 3 µm (0.00012") 8.6 µm (0.00034")

Model 112-102 Model 216-142

Linear Accuracy : 0.00018" + 0.000006" per inch

Bandwidth : 4.5 µm + L * 0.150 µm, (L in mm)

Performance per ANSI B89.4.1a-1998 : Performance is based on dynamic measurements with touch trigger probes and 300 mm Ball Bar. Tests are at 68°F and 50% relative humidity .

Mechanical Accuracy is intrinsic without volumetrically compensating through software.

Tests are conducted at standard 68°F (20°C) and 50% humidity.

Power Requirements : 120-230 V~, 50-60Hz, 10A, Grounded AC. Surge suppression is recommended.

Weight :

112-102

198kg (436 lbs)

216-142

280 kg (616 lbs)
System Options
•Renishaw Probe Systems: TP-ES, PH6, MH8, MH20i, PH10T

Geomet 301

•Vibration isolating Pads

Renishaw UCC2 Controller

Clamp Kit

•GeoStat, Real-time SPC Renishaw Stylus Change Racks
•Geomet Gage R&R •Castors for portability
